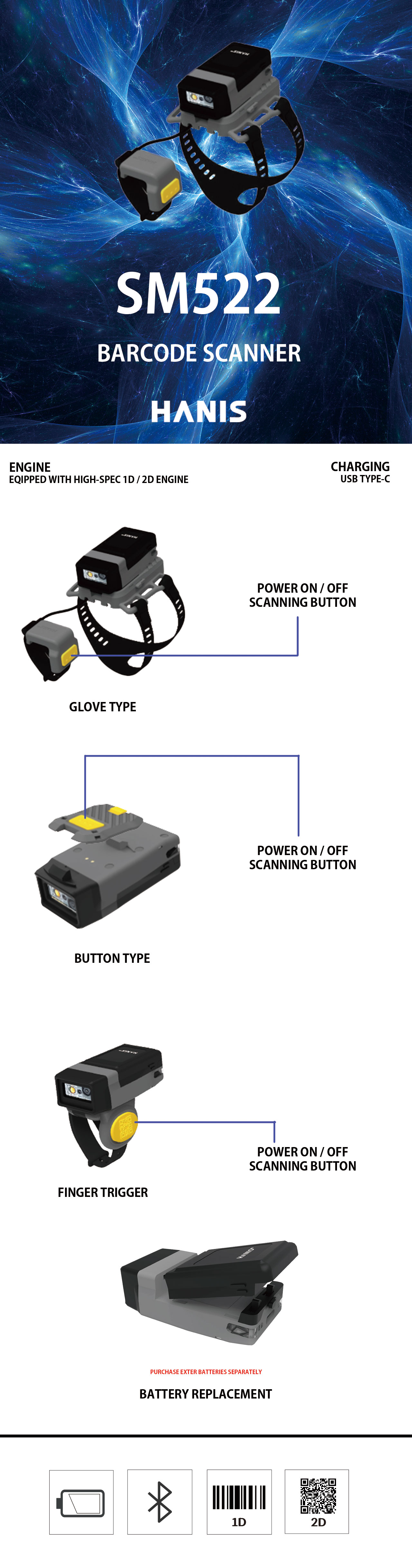

Barcode Scanner SM522
| Dimension | 66.4mm(L) x 34.7mm(W) x 25.3mm(D) 2.61in.(L) x 1.37in.(W) x 1.0in.(D) With extended battery |
|---|---|
| Weight | 43g/1.52oz With extended battery |
| Battery | 400mAh |
| Charge | 5V === 1A |
| Charging time | 400mAh1, 80min 600mAh, 100min |
| Battery | 400mAh,6h(to be triggered every 5 seconds) 600mAh,9h(to be triggered every 5 seconds) |
| Notification | LED, Buzzer, Vibration |
본문
 |
Specifications
| Product introduction | |
|---|---|
| The SM522, a wearable 2D scanner, has the durability of industrial scanners and delivers high-throughput scanning. Equipped with dual-mode Bluetooth 5.0 technology, optimized to greatly improve performance and reduce error rates, and support three Bluetooth modes. It also has vibration alerts, AI ID recognition, real-time transmission, and offline download features. It is suitable for a wide range of applications, from logistics and industrial warehouses to retail. The exterior design is based on high durability and maintains an IP65 waterproof rating while providing a comfortable grip, allowing workers to scan from multiple angles, providing increased flexibility and higher productivity. The addition of a side scan button allows operators to choose to operate with either left or right hands. The silicone coating on the outside allows for easy maintenance and a clean appearance. The scanning feature provides high-quality scanning of printed barcodes and barcodes displayed on mobile device displays, and is compatible with virtually all barcodes. The clear sight illumination lets users know they are pointing at the correct location for the scanning target. Rugged dual-layer shockproof design eliminates the need for a protective case and protects the internal circuit board and components from drops and shocks, ensuring stable performance. |
| PHYSICAL CHARACTERISTICS | |
|---|---|
| Dimensions | With standard battery : 66.4mm(L) x 34.7mm(W) x 25.3mm(D) 2.61in.(L) x 1.37in.(W) x 1.0in.(D) With extended battery : 66.4mm(L) x 34.7mm(W) x 26.9mm(D) 2.6in.(L) x 1.4in.(W) x 1.06in.(D) |
| Weight | With standard battery ： 43g/1.52oz With extended battery: 45g /1.59oz |
| Battery Capacity | Standard battery: 400mAh Extended battery: 600mAh |
| Charging | 5V === 1A |
| Charging Time | 400mAh1, 80min 600mAh, 100min |
| Battery capacity | 400mAh,6h(to be triggered every 5 seconds) 600mAh,9h(to be triggered every 5 seconds) |
| Notification | LED, Buzzer, Vibration |
| BLUETOOTH | |
|---|---|
| HID Keyboard, SPP and Bluetooth low energy(BLE) | |
| Bluetooth Range | Communication distance connected to mobile phone > 164.04ft./50m (without obstructions) |
| Bluetooth OTA | Bluetooth SPP OTA |
| USB | |
|---|---|
| USB Interface | USB Type-C |
| USB Profiles | USB HID Keyboard, USB VCP(Virtual Serial Port) |
| Multilingual keyboards | USB HID mode supports multilingual keyboards |
| USER ENVIRONMENT | |
|---|---|
| Ambient Light | 100,000 lux |
| Operating Temperature | 14℉ ~ 122℉/-10℃-50℃ |
| Storage Temperalyre | 14℉ ~ 122℉/-10℃-50℃ |
| Humidity | 5% to 85% non-condensing |
| Drop Spec | Multiple 4.9ft./1.5m drops to concrete over the operating temperature range. |
| TLimble Spec. | Scanner body withstands 20,000 3.3ft./1.0m tumbles. |
| Electrostatic Discharge(ESD) | ±8kVdc contact discharge; ±15kVdc air discharge |
| Certification | CE, FCC, KC, TELEC, RoHS, ANATEL, NOM, EAC |
| PERFORMANCE CHARACTERISTICS | |
|---|---|
| Optical Resolution | 640 x 480 pixels |
| Sensor | Rolling shutter |
| Skew, Pitch & Roll | Skew Tolerance: ±45° Pitch Tolerance： ±45° Roll Tolerance: 360° |
| Field of view | Horizontal: 37.8°, Vertical: 28.8° |
| Illumination Element | White LED |
| Aiming Element | Red LED dot |
| Supported Symbologies | Linear Coda bar, Code 11, Code 128, Code 2 of 5, Code 39, Code 93 and 93i, EAN/JAN-13, EAN/JAN 8, IATA Code 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI, GS1 Databar, UPC-A, UPC E, UPC-A/EAN-13 with Extended coupon Code, Coupon GS1 Code 32(PARAF), EAN-UCC Emulation, GS1 Data bar 2D Stacked: Codablock A, Codablock F, PDF417, Micro PDF417 2D Matrix: Aztec Code: Data Matrix, Maxi Code, QR Code, Chinese Sensible(Han Xin) code Postal Codes: Australian Post, British Post, Canadian Post, China Post, Japanese Post, Korea Post, Nether-lands Post, Planet Code, Postne |
| Interface | USB, Bluetooth |
| Offline Mode | Support storage 5000 EAN-13 barcodes |
| DECODERANGES | |
|---|---|
| 100% U.P.C. | 55 to 280 mm (2.1 to 11 in) |
| 5 mil Code 39 | 61 to 130 mm (2.4 to 5.1 in) |
| 20 mil Code 39 | 60 to 380 mm (2.4 to 15 in) |
| 6.7 mil PDF417 | 60 to 125 mm (2.4 to 4.9 in) |
| 10 mil Data Matrix | 60 to 130 mm(2.4 to 5.1 in) |
| 20 mil QR | 50 to 230 mm (2 to 9 in) |
| SOFTWARE SUPPORT | |
|---|---|
| Keyboard Pro SDK Demo OTA Tools iCode G-Service | |
| product options | |||
|---|---|---|---|
| Battery |  |
Double charger |  |

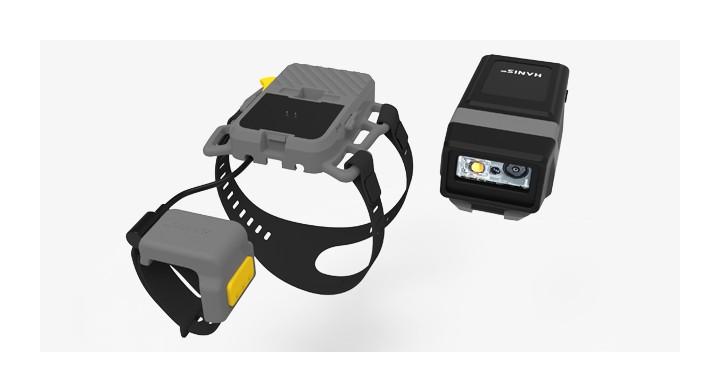

| Hand band |  |

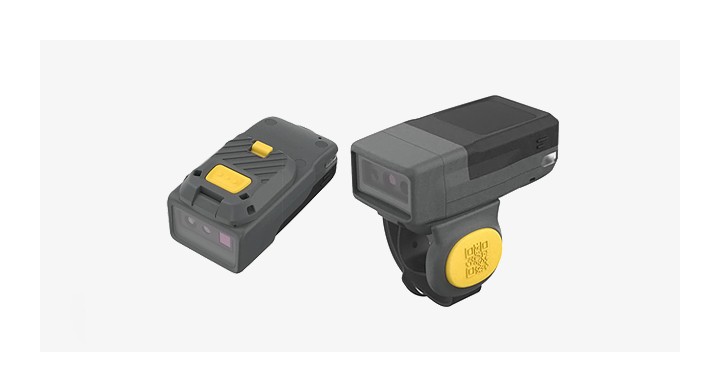

Ring trigger/Button trigger |  |
 |
